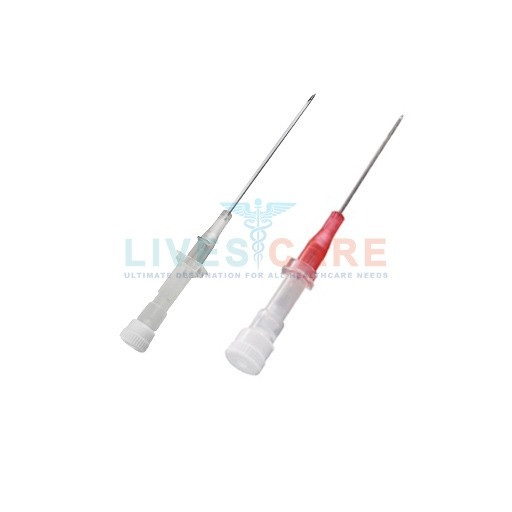

IV Cannula Without Injection Valve and Without Wings

IV Cannula Without Injection Valve and Without Wings Manufacturers in India

IV Cannula without Injection Valve and without Wings

Product Code : MD-0143-0006



  • The flash back chamber allows quick visualization of venous return.
  • Needle cover to prevent accidental damage to needle & catheter.
  • Color coded body/port cap as per ISO Standard.
  • 6% luer taper as per international standard.
  • Japanese stainless steel (AISI 304) needle with diameter and length adhering to all ISO standards.
  • Triple point Needle for painless insertion.
  • Thin walled, Radio-opaque stripped / transparent Teflon catheter, as per USP standard Class VI.
  • Customized Automated Tipping Technology for lower penetration forces.
  • Optimum trim distance for pain free penetration. Sterile, Individually Sealed blister packed & Disposable.



Technical information:

Gauge

Ext. Dia.
(mm.)

Length (mm.)

Flow Rate (ml./min.)

Colour Code

14

2.1

45

300

Orange

16

1.8

45

200

Grey

17

1.5

45

140

White

18

1.3

45

90

Green

20

1.1

33

61

Pink

22

0.9

25

36

Blue

24

0.7

19

15

Yellow

26

0.6

19

13

Purple
